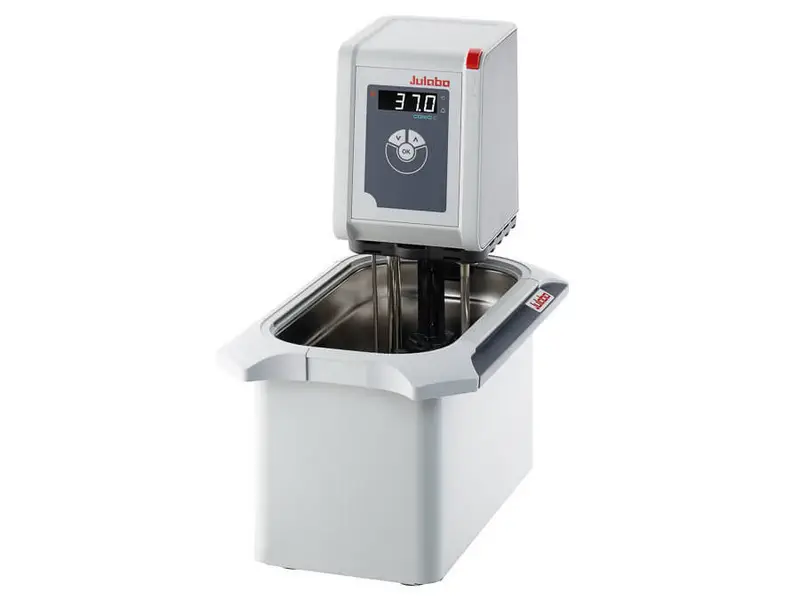

068053 · Corio C-B5 heating bath circulator with stainless steel tank - Filling volume from 3.5 to 5 litres

• Available with stainless steel or transparent bath tanks
• For internal applications
• Bright, easy-to-read LED display
• Low liquid level alarm
• Working temperature range: +20 to +100 °C
• For applications near or below ambient temperature: use a cooling coil (temperature of the cooling water must be at least 5 ° C lower than the working temperature)
• Optional lid for tank available

C-BT5 circulator:
• With polycarbonate transparent bath tank
• Bath opening/depth (W x L/D): 15 x 15/15 cm
• Dimensions (W x L x H): 23 x 38 x 38 cm

C-BT9 circulator:
• With polycarbonate transparent bath tank
• Bath opening/depth (W x L/D): 23 x 15/15 cm
• Dimensions (W x L x H): 32 x 38 x 38 cm

C-BT19 circulator:
• With polycarbonate transparent bath tank
• Bath opening/depth (W x L/D): 30 x 35/15 cm
• Dimensions (W x L x H): 38 x 58 x 38 cm

C-BT27 circulator:
• With polycarbonate transparent bath tank
• Bath opening/depth (W x L/D): 30 x 35/20 cm
• Dimensions (W x L x H): 38 x 58 x 43 cm

C-B5 circulator:
• With stainless steel bath tank
• Bath opening/depth (W x L/D): 15 x 15/15 cm
• Dimensions (W x L x H): 23 x 38 x 41 cm

C-B13 circulator:
• With stainless steel bath tank
• Bath opening/depth (W x L/D): 30 x 18/15 cm
• Dimensions (W x L x H): 38 x 40 x 42 cm

C-B17 circulator:
• With stainless steel bath tank
• Bath opening/depth (W x L/D): 30 x 18/20 cm
• Dimensions (W x L x H): 30 x 40 x 47 cm

C-B19 circulator:
• With stainless steel bath tank
• Bath opening/depth (W x L/D): 30 x 35/15 cm
• Dimensions (W x L x H): 38 x 58 x 42 cm

C-B27 circulator:
• With stainless steel bath tank
• Bath opening/depth (W x L/D): 30 x 35/20 cm
• Dimensions (W x L x H): 38 x 58 x 47 cm
