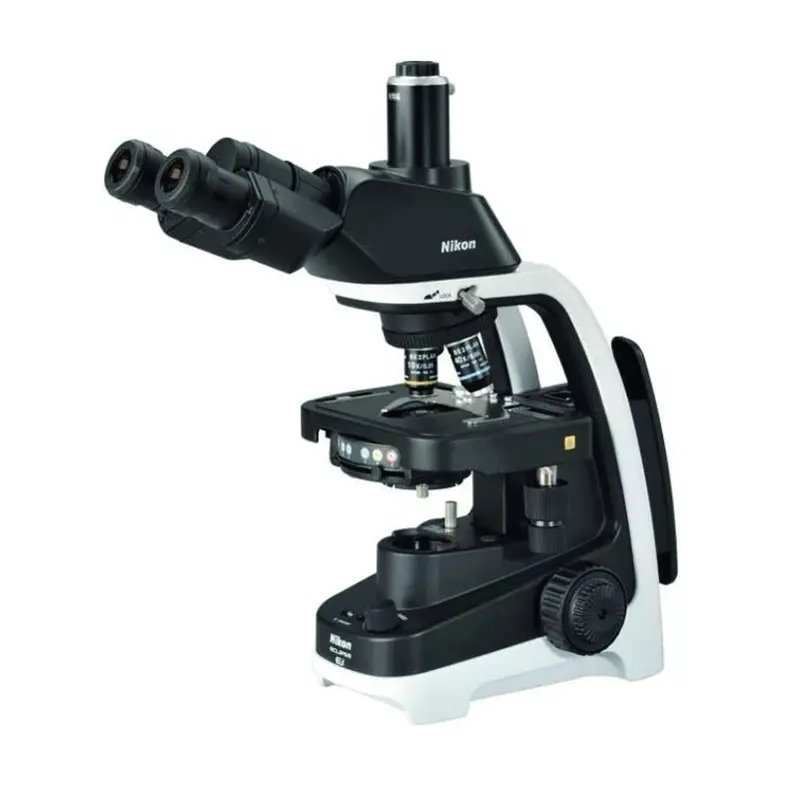

094769 · Eclipse EI trinocular upright microscope

Innovative and easy to use microscopes... ideal for teaching.

• Very bright LED lighting
• Comfortable viewing position: eyepieces can be adjusted up or down
• Simple and intuitive interface with smooth operation
• Compact PCB without annoying overhang on either side
• Fine tuning possible from both sides
• Safe focus: a limit to the height of the stage can be set to prevent breakage of the blades or damage to the lenses
• Intuitive and fun condenser adjustment with colour recall between the condenser aperture and the lenses
• Very light and compact: takes up little space on the workspace
• Supplied complete with binocular or trinocular lenses 4X/ 10X/40X
• 0.55X lens integrated into the camera port of the trinocular model
• Quadruple inverted turret
• Rectangular mechanical platform with specimen holder, 76 (X) x 30 (Y) mm
• Objectives (NA/W.D.):
- Achromat CFI BE2 4X plane (0.1/25 mm)
- Achromat CFI BE2 10X plane (0.25/6.7 mm)
- Achromat CFI BE2 40X plane (0.65/0.6 mm)
• Abbe condenser, NA 0.1 ~ 1.25
• Observation method: white light
• Antifungal treatment: antifungal paint is applied around the optical system
